平行軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速機廠家 > FA系列減速機廠家

FA27/GDV71S4詳細信息

prevnext

FA27/GDV71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：一分鐘369轉減速機電機_FA27/GDV71S4_FA27/GDRN71S4

FA27/GDV71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FA27/GDV71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FA27/GDV71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FA27/GDV71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FA27/GDV71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FA27/GDV71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FA27/GDV71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FA27/GDV71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FA27/GDV71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FA27/GDV71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FA27/GDV71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FA27/GDV71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FA27/GDV71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FA27/GDV71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FA27/GDV71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FA27/GDV71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FA27/GDV71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FA27/GDV71S412.350.25KW105rpm23N.m20Kg3090N5.70
FA27/GDV71S410.550.25KW123rpm19N.m20Kg2950N6.70
FA27/GDV71S49.880.25KW132rpm18N.m20Kg2900N7.20
FA27/GDV71S49.400.25KW138rpm17N.m20Kg2840N7.50
FA27/GDV71S48.130.25KW160rpm15N.m20Kg2720N8.30
FA27/GDV71S46.910.25KW188rpm13N.m20Kg2590N9.00
FA27/GDV71S46.170.25KW211rpm11N.m20Kg2500N9.60
FA27/GDV71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FA27/GDV71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FA27/GDV71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

FA27/GDRN71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FA27/GDRN71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FA27/GDRN71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FA27/GDRN71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FA27/GDRN71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FA27/GDRN71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FA27/GDRN71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FA27/GDRN71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FA27/GDRN71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FA27/GDRN71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FA27/GDRN71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FA27/GDRN71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FA27/GDRN71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FA27/GDRN71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FA27/GDRN71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FA27/GDRN71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FA27/GDRN71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FA27/GDRN71S412.350.25KW105rpm23N.m20Kg3090N5.70
FA27/GDRN71S410.550.25KW123rpm19N.m20Kg2950N6.70
FA27/GDRN71S49.880.25KW132rpm18N.m20Kg2900N7.20
FA27/GDRN71S49.400.25KW138rpm17N.m20Kg2840N7.50
FA27/GDRN71S48.130.25KW160rpm15N.m20Kg2720N8.30
FA27/GDRN71S46.910.25KW188rpm13N.m20Kg2590N9.00
FA27/GDRN71S46.170.25KW211rpm11N.m20Kg2500N9.60
FA27/GDRN71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FA27/GDRN71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FA27/GDRN71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

FA27/GDV71S4齒輪減速機馬達類型：

F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機

FA..B底腳空心軸安裝平行軸—斜齒輪減速機

FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機

FA..空心軸安裝平行軸—斜齒輪減速機

FV..花鍵空心軸安裝平行軸—斜齒輪減速機

FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機

FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FAZ..是B14法蘭安裝平行軸—斜齒輪減速機

FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FF..是B5法蘭安裝平行軸—斜齒輪減速機

FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

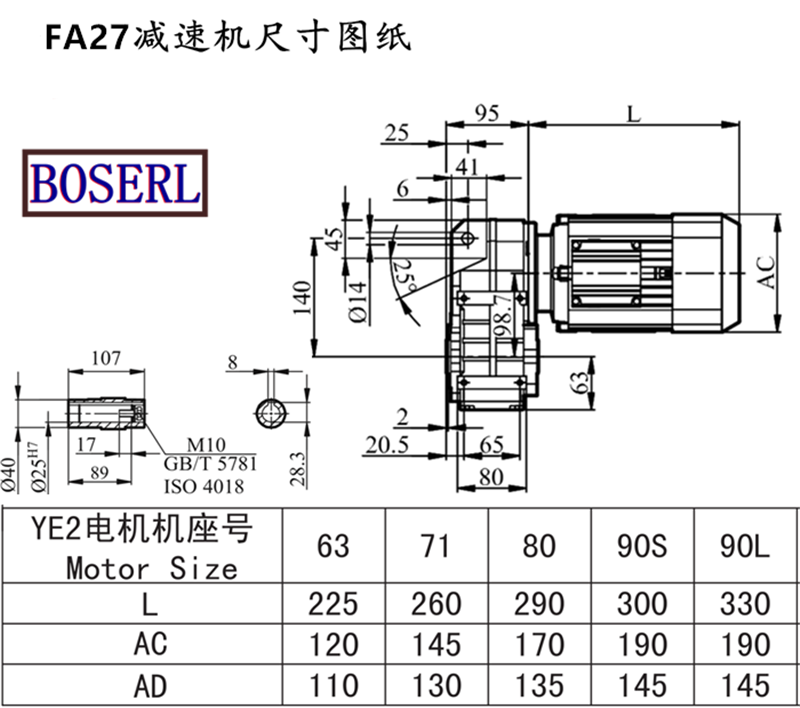

FA27/GDV71S4齒輪減速機馬達安裝尺寸圖紙



FA27/GDV71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機

關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家

FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機

FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:  FA27DRN71S4 一分鐘369轉減速機電機 FA27/GDV71S4 FA27/GDRN71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA27/GDV71S4減速機樣本 點擊下載
FA27/GDV71S4減速機三維圖紙 點擊下載
